Teradek 15-0048 RT TOF.1 Rangefinder

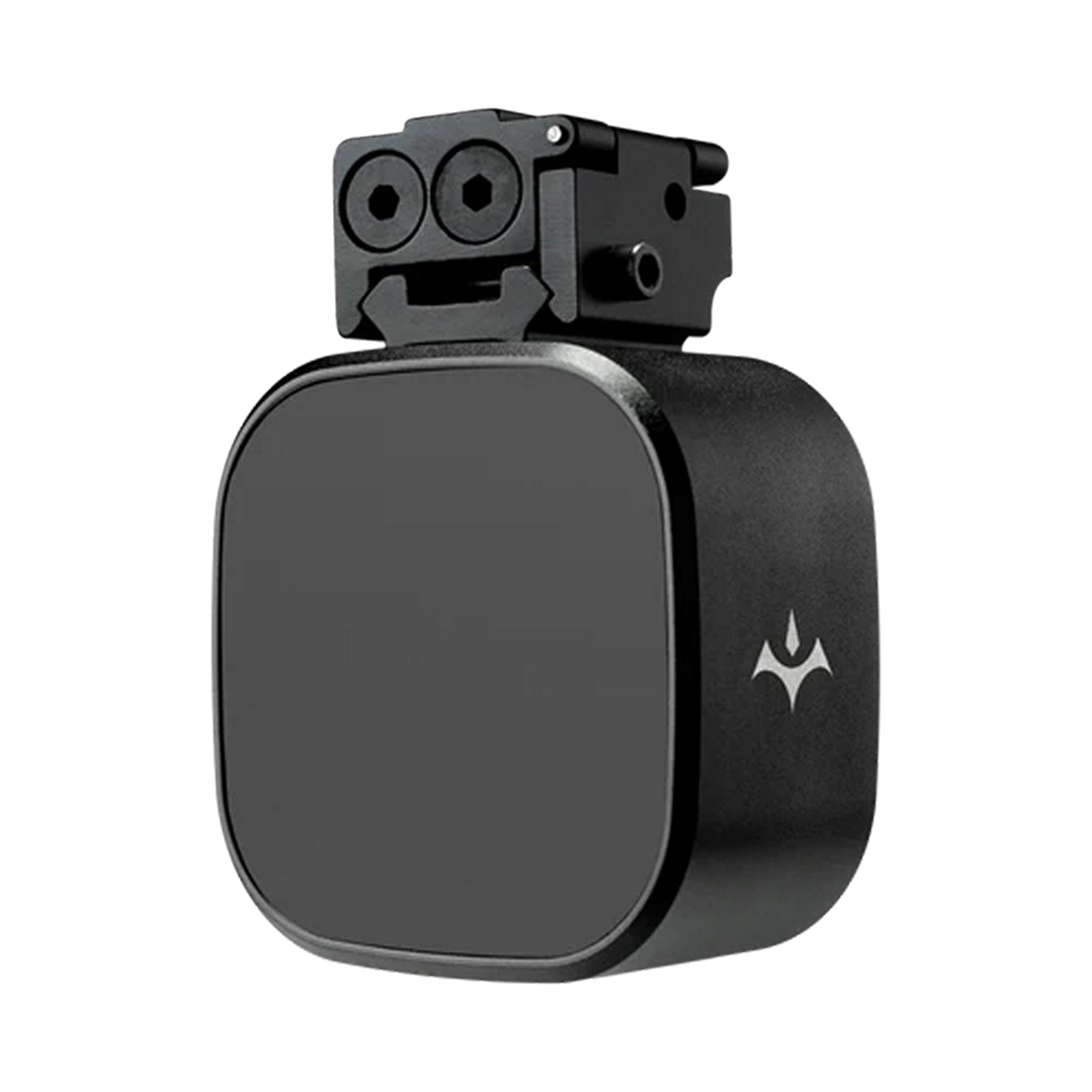

Introducing the TOF.1 Rangefinder for Teradek RT. This small, lightweight infrared (IR) rangefinder provides constant distance measurements between objects and a camera’s focal plane. Connect your TOF.1 with the MDR.X Lens Control Receiver to provide distance readouts on CTRL.1 or CTRL.3 wireless handheld controllers. With a sensor refresh rate of 60 times per second, precision autofocus can be activated on your handheld wireless controller with a simple On/Off toggle button for quick access to automated lens adjustments.

Control and power for TOF.1 are provided by MDR.X and require only a single Control Cable-the same as Teradek RT Lens Motors. Access configuration tools within the MDR.X menu to accurately calibrate TOF.1. MDR.X radio control with CTRL.1 and CTRL.3 handheld wireless controllers will also communicate TOF.1 distance readouts.

LED infrared beams measure the distance of subjects within a 3 degree field of view of TOF.1’s proximity sensor, at a direct line-of-sight range of up to 80ft. The overall radius of the sensor’s field of view will narrow or widen as a subject moves toward/away from the camera, allowing a long range of focal detection from macro close-ups to farther distances.

Autofocus can be enabled by programming any User Button on CTRL.1 or CTRL.3. Identify and set a focal point and the lens motor will adjust accordingly. TOF.1 refreshes a subject’s distance measurement 60 times a second, with instantaneous adjustments to focal length by the lens motor–faster than the human eye can understand movement. A proprietary smoothing algorithm prevents excessive jitter within the lens motor, so back-and-forth adjustments are blended together with near imperceptibility.

SmallHD’s powerful PageOS 4 software features lens data overlays that display critical follow focus information. Connect any compatible SmallHD monitor with CTRL.1 or CTRL.3 and activate the RT Overlay option to view TOF.1’s numerical distance readout on-screen. The rangefinder information can be adjusted in size, so Camera Assistants can compare lens position and adjust focus with their wireless controller accordingly. For a totally wireless workflow, pair SmallHD monitors with Teradek Bolt 4K wireless video receivers.

Key Features

• Line-of-sight Accuracy up to 80ft (25.4m)
• Subject Distance Readouts
• Autofocus with Teradek RT
• Single cable Power+Control
• Detachable Laser Sight
• Customizable Distance Overlays on SmallHD Monitors

Technical Specifications

Interfaces
Connectors
4 pin Lemo, data/power
Power
Power Input
RTMotion MDRX Motor Port, 4 pin Lemo, 7-20V
Network
Wireless Range
0 to 80 feet, 2.9-degree detection
Physical
Mountability
2x ¼-20, 1x Nato Rail
Dimensions
58mm x 58mm x 34 mm
Weight
125g
Construction
Machined
