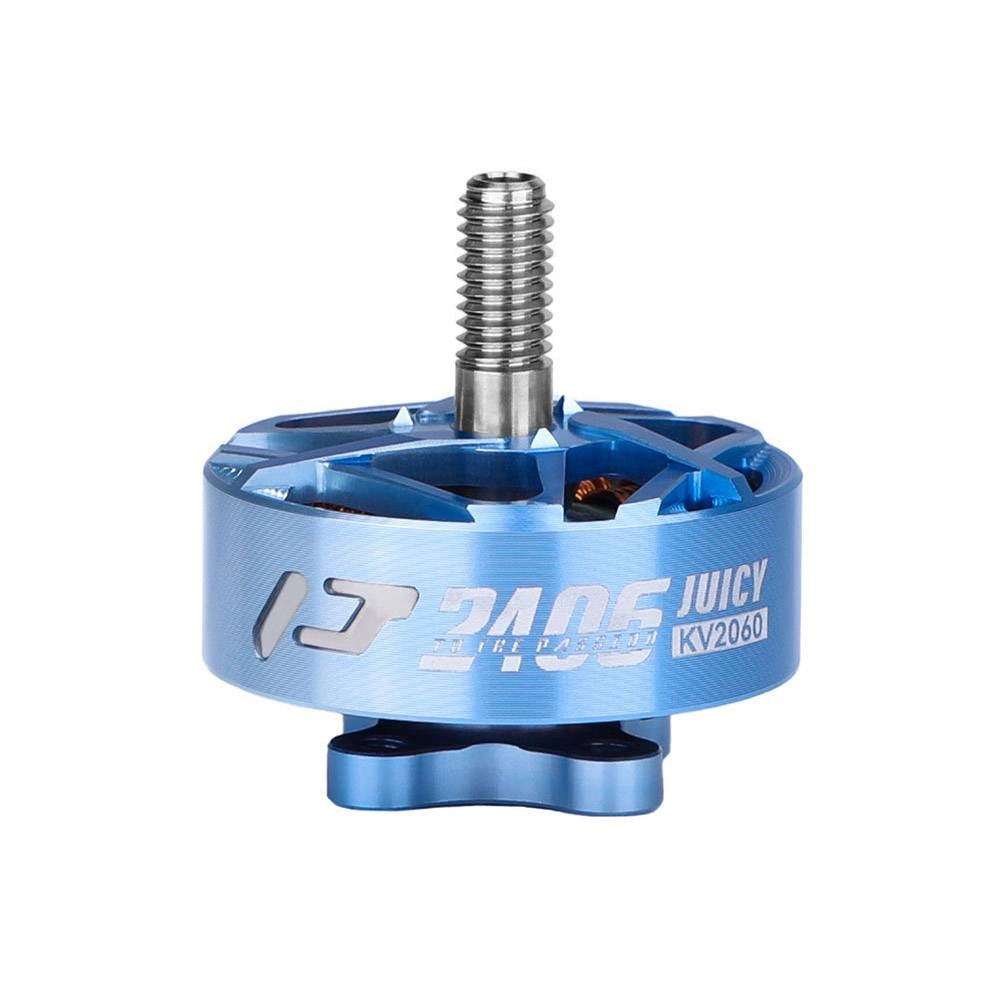

T-Motor Pacer V4 P2406 Juicy 2406 Motor 2060KV Clearance Websites

The T-Motor Pacer V4 P2406 Motor delivers exceptional power and precision for freestyle pilots. With a 2060KV rating, nickel-plated magnets, imported bearings, and a durable 5mm shaft, it offers reliable performance in any condition. Lightweight at 36g, it provides 1993g of thrust and 1116W peak power, making it perfect for pushing limits or mastering freestyle.

Features

• Outstanding Performance
• Lightweight Construction
• Advanced Configuration
• Premium Components
• Freestyle Optimized
• Durable Design
• High KV Rating
• Versatile Use

Specifications

• • Coil Insulation Test: 500V withstand voltage (5s)
  • Waterproof and Dustproof Class: Standard
  • Packing Size: 61mm x 41.5mm x 32.5mm
  • Prop Adapter Shaft Thread: M5 x 10mm
  • Dynamic Balance Requirements: <5mg
  • Motor Dimensions: 30.2mm x 31mm
  • Magnet: Nickel-plated arc magnet
  • Lead Wires: 20AWG x 150mm
  • Bearings: Imported 684ZZ
  • Screw Diameter: 16-M3-4
  • Configuration: 12N14P
  • Shaft Diameter: 5mm
  • Packing Weight: 50g
• Technical
  • Weight (including cable): 36g
  • Internal Resistance: 45mΩ
  • Rated Voltage (LiPo): 24V
  • Idle Current (10V): 1.9A
  • Max Power (1s): 1116W
  • Peak Current (1s): 48A
  • Max Thrust: 1993g
  • KV: 206

Includes

• 1x T-Motor Pacer V4 P2406 Juicy 2406 Motor – 2060KV
• 1x Hardware Kit
