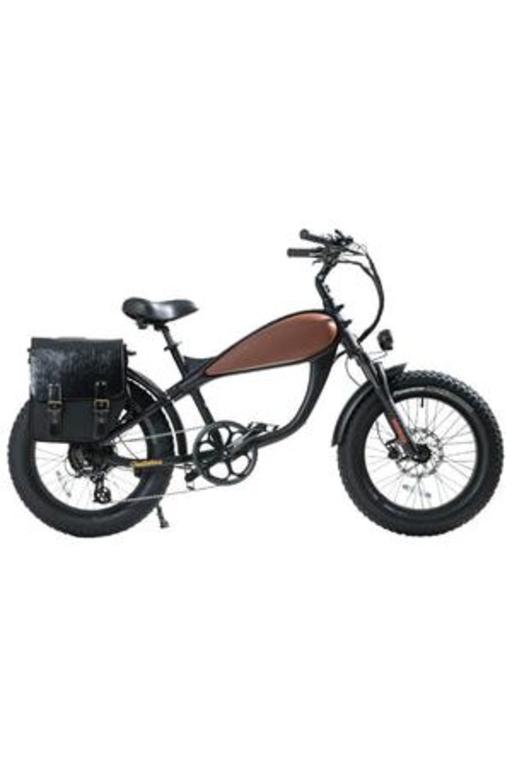

Revi Bikes Cheetah Mini 500W Fat Tire Electric Bike

The new Revi Cheetah Mini includes the retro cafe racer stylings that made the OG Original Cheetah electric bike so famous. But they have come up with a revolutionary new design, that has shrunk the dimensions to fit more customers. For a comparison of the different Cheetah models, check out our latest blog post.

The Mini features 20″ x 4″ fat tires, perfect for off-road riding or cruising through the urban jungle. These heavy-duty tires combine an aggressive tread with larger, cut, center blocks for tremendous grip and change up to the block-cut edge lug for fantastic cornering traction.

It has a cush saddle, front shocks, adjustable stem, curved handlebars, and hydraulic disc brakes, all contributing to a very comfortable ride.

The Cheetah Mini comes equipped with a headlight, fenders, and a bell, as well as front mounts for a front rack or basket.

The Cheetah Mini can be ridden like a conventional bike, using only the 7-speed Shimano drivetrain to propel you forward with pedaling action. But when you need a boost, the Mini will not disappoint. It is outfitted with a very robust 500W rear hub motor, paired with a 48V/15Ah battery with Samsung cells, which is hidden in the teardrop gas tank. You can use the 5-level pedal assist system (PAS) to help you along, or ride pedaling-free using the right-side half-grip twist throttle.

REVI CHEETAH MINI 500W SPECIFICATIONS
Motor: 500W Motor (750W Peak) Revi Bikes™ Rear Hub Motor
Battery: 48V/15Ah Lithium-Ion Battery w/ Samsung Cells Hidden in Teardrop Gas Tank
Charge Time: 4-6 Hours
Drive Modes: 7-Speed Shimano Altus Drivetrain, 5-9 Levels Pedal Assist System (PAS) and Right-Side Half-Grip Twist Throttle
Display Type: Fixed, Backlit, Color LCD C900E-USB Display, See Display Manual & Video Instructions Below
Frame: Cafe Racer Styled 6061 Aluminum Alloy Frame
Brakes: Front & Rear Tektro™ E350 Hydraulic Disc Brakes w/ 160mm Rotors
Stem: Adjustable Stem (adjustable both vertically & horizontally)
Tires: 20″ x 4.0″ Puncture-Resistant Panaracer Fat B Nimble Tires w/ Kevlar Beads
Suspension: Mozo™ Suspension Fork
Recommended Rider Height: 4′-11″ – 5′-9″
Max Assisted Speed: 20 mph on Throttle, 28 mph on Pedal Assist
Weight: 62 Lbs. w/ Battery
Max Load Capacity: 300 Lbs
Wheelbase: 45″
Seat Tube: 16″
Standover Height: 22.5″
Handlebar Height: 37″ – 39.5″
Total Length: 68″
Reach: 21″ – 22.5″
Seat Height: 31″ – 36″
Accessories: Fenders, Front Light, Bell, Kickstand
Assembly: The Cheetah Mini comes mostly assembled. Final assembly includes attachment of the front wheel, front fender, lights, pedals and handlebar. Please see the assembly video below.
Tools Required: 5mm, 15mm Wenches, Revi Multi-Tool (or 4mm & 5mm Allen Hex Keys) Included
Shipping: Free shipping from the Los Angeles area warehouse to the lower 48. We are unable to ship this brand to Alaska, Hawaii or Canada at this time.
