Camplex CMX-TACNGO-SDI 1000 Foot Fiber Optic Converter Extender Cable Reel System

A complete cost effective 3G SDI to fiber optic extender and converter in a field deployable cable reel system. Convert and extend your SDI signals over 1000 feet of tactical fiber optical cable using the Camplex Tac-N-Go SDI system. Convert any camera or 3G SDI source to a powerful long haul fiber transmission system. The 3G-SDI extender is either battery or AC powered making it perfect for mobile video, stadiums, sports venues, live event arenas and more. Long life Lithium 9V batteries are included.

Key Features

• 1000 Foot Tactical Fiber Cable Reel
• 3112 Transmitter – Serial Video BNC Input, Data Rate Range: 19.4 Mbps to 2.97 Gbps, Number of Inputs: 1
• 3112 Transmitter – Optical Output, Connector: ST, with chain-attached dust cap, Wavelength: 1310nm (nominal)
• 3113 Receiver – Fiber Optic Input, Connector: ST, with chain-attached dust cap, Wavelength: 1100 – 1620 nm
• 3113 Receiver – Serial Video BNC Input, Number of Outputs: 1, Reclocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

Technical Specifications

3112 Transmitter – Serial Video BNC Input
Number of Inputs
1
Data Rate Range
19.4 Mbps to 2.97 Gbps
Supported Standards
SMPTE 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI
Re-clocked Data Rates
270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
Equalization
Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
Return Loss
>10dB up to 2.97 Gbps
3112 Transmitter – Optical Output
Connector
ST, with chain-attached dust cap
Wavelength
1310nm (nominal)
Emitter Type
FP Laser
Output Power
-8 dBm Min (Single Mode); -3 dBm Min (Multimode 50u/62.5u)
3113 Receiver – Fiber Optic Input
Connector
ST, with chain-attached dust cap
Wavelength
1100 – 1620 nm
Minimum Input Sensitivity
-18 dBm at 2.97 Gbps; -20 dBm at 1.485 Gbps -20 dBm at 270 Mbps;
Maximum Input Power
0 dBm
3113 Receiver – Serial Video BNC Input
Number of Outputs
1
Signal Level
800mV ± 10%
DC Offset
0V ± 0.5V
Rise/Fall Time
< 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
Overshoot
< 10% of amplitude
Timing Jitter
< 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal
Alignment Jitter
< 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
Reclocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Beamer Series General Specifications
Indicator
Power/Battery
Switch
Internal Battery On/Off
Power
External 9-24 volts DC or user supplied internal 9 volt battery. Internal battery can be used for glitch-free backup to external power source or battery only operation.
Power Disipation
Transmitter: 1.20 Watts, 4.09 BTU/hr Receiver: 1.20 Watts, 4.09 BTU/hr
Power Connector
Coaxial type with locking threads; 5.5mm O.D., 2.1mm I.D.
Operating Temperature
-10o C to +50o C
Dimensions
2.4 x 4.47 x 1.06 (in) (60.96 x 113.53 x 26.92 mm)
Weight
4.23 oz. with batt., 2.60 oz without batt.
Approximate Internal Battery Life
3 hours, 30 minutes with Lithium battery; 1 hour, 50 minutes with Advanced Alakaline battery ; 1 hour, 30 minutes with Alakaline battery
MTBF
175,000 Hours

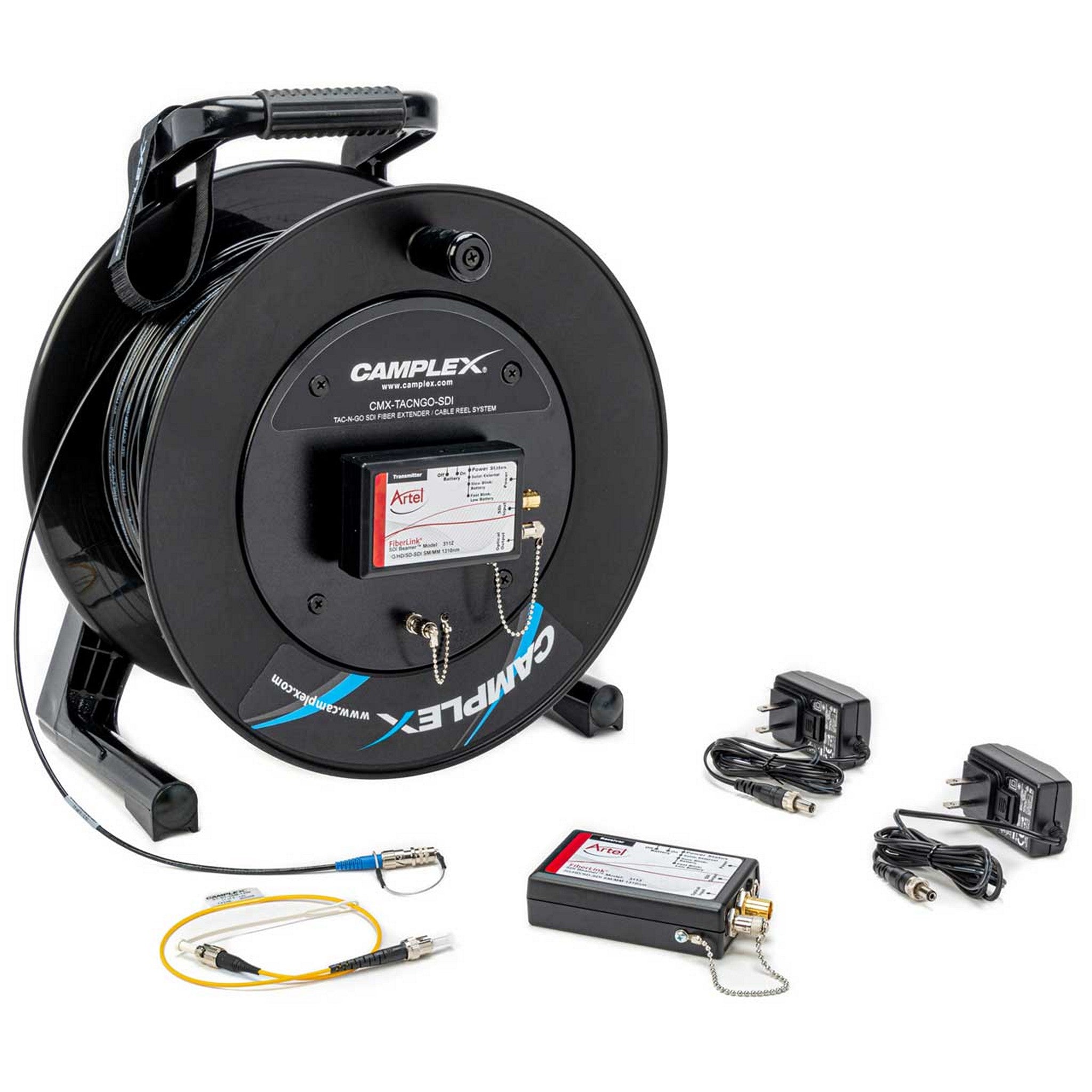

Item Includes
3112 Transmitter
3113 Receiver
Two PDPS-4 Power Supplies
Two 9V Lithium Batteries
JACKREEL-F4 Cable Reel
1000 Foot TAC1 ST Singlemode Cable
