Camplex 4-Channel LC Singlemode Fiber Optic Tactical Snake Reel, 2000 Foot Free Shipping Low Pice

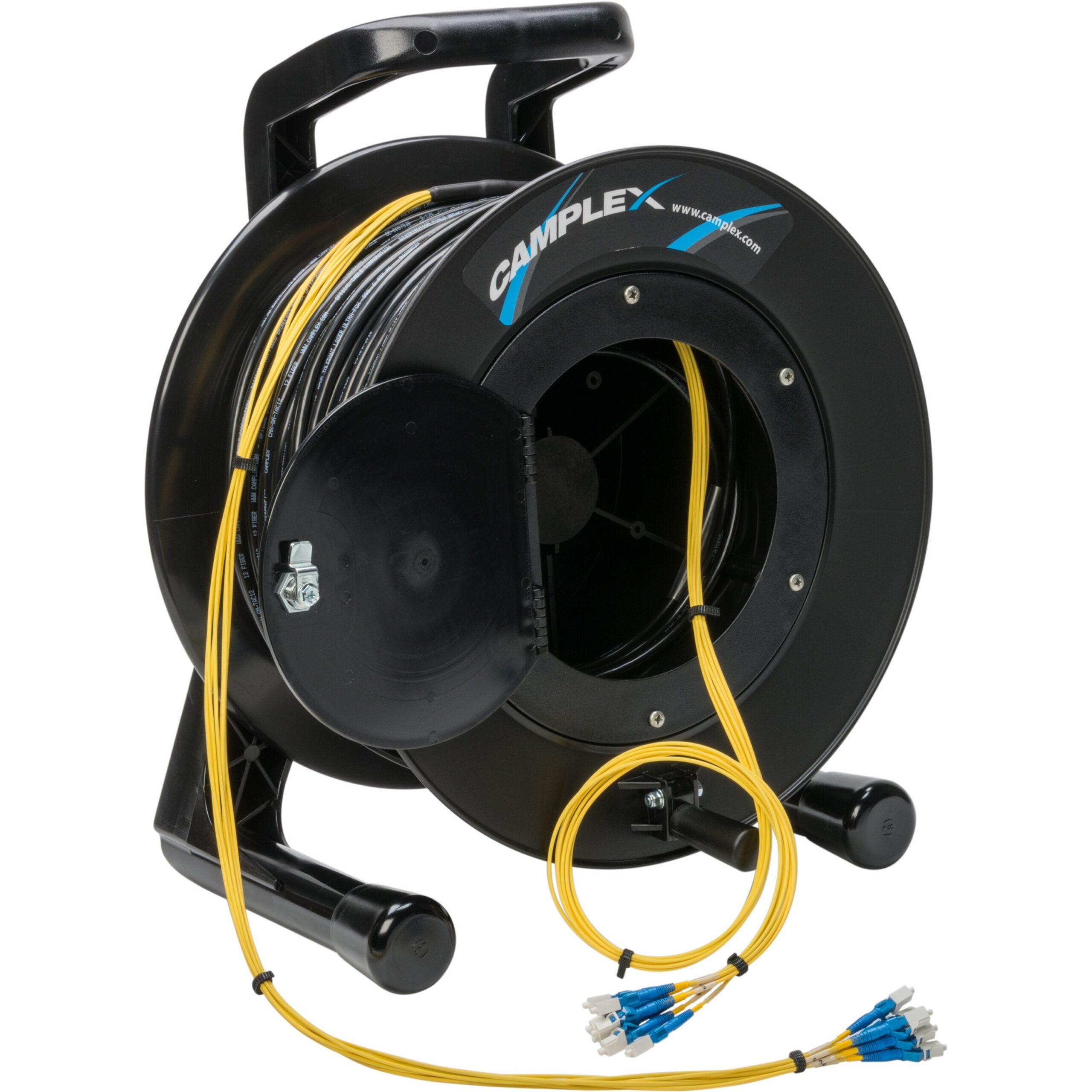

Camplex 4-Channel LC Singlemode Fiber Optic Tactical Snake Reel, 2000 Foot

This 4 channel tactical fiber cable is designed for Broadcast & Pro-AV deployment applications and meets all outdoor tactical needs for applications requiring an outdoor rated crush and impact resistant design. The tough Thermoplastic Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko LC or ST premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. All products are 100% tested and a complete set of test documentation of your cable is available upon request.

Key Features

• Broadcast Deployable
• Indoor/Outdoor rated jacket.
• Typical RL <-55dB and IL<0.25dB.
• Wide temperature range (typically -55C to 85C)
• 500um primary acrylate buffer with 900um secondary hard buffer
• Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
• Designed to withstand crush and impact after deployment
• Strong, lightweight and extremely durable cable

Technical Specifications

Industry Standard Designation
SMF-28
Core/Cladding Diameter (um)
9/125
Wavelength (nm)
1310/1550
Maximum Cabled Attenuation (dB/km)
0.5/0.5
Primary Coating Diameter (um)
500
Secondary Buffer Diameter (um)
900
Typical RL <-55dB and IL<0.25dB
