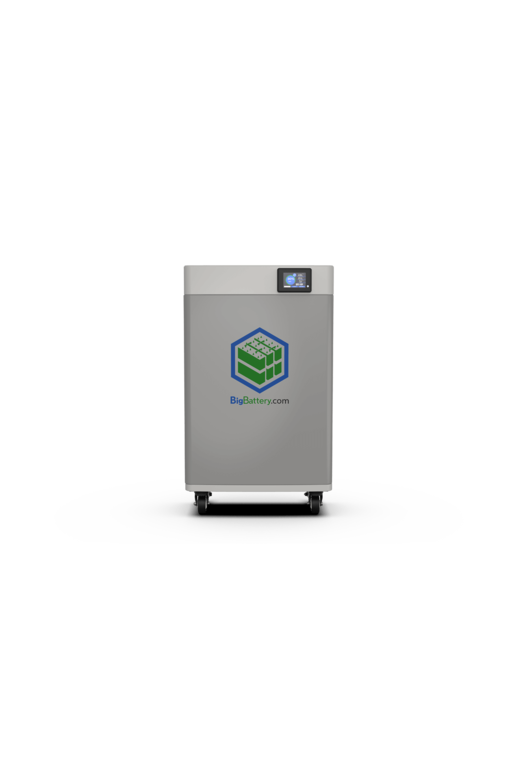

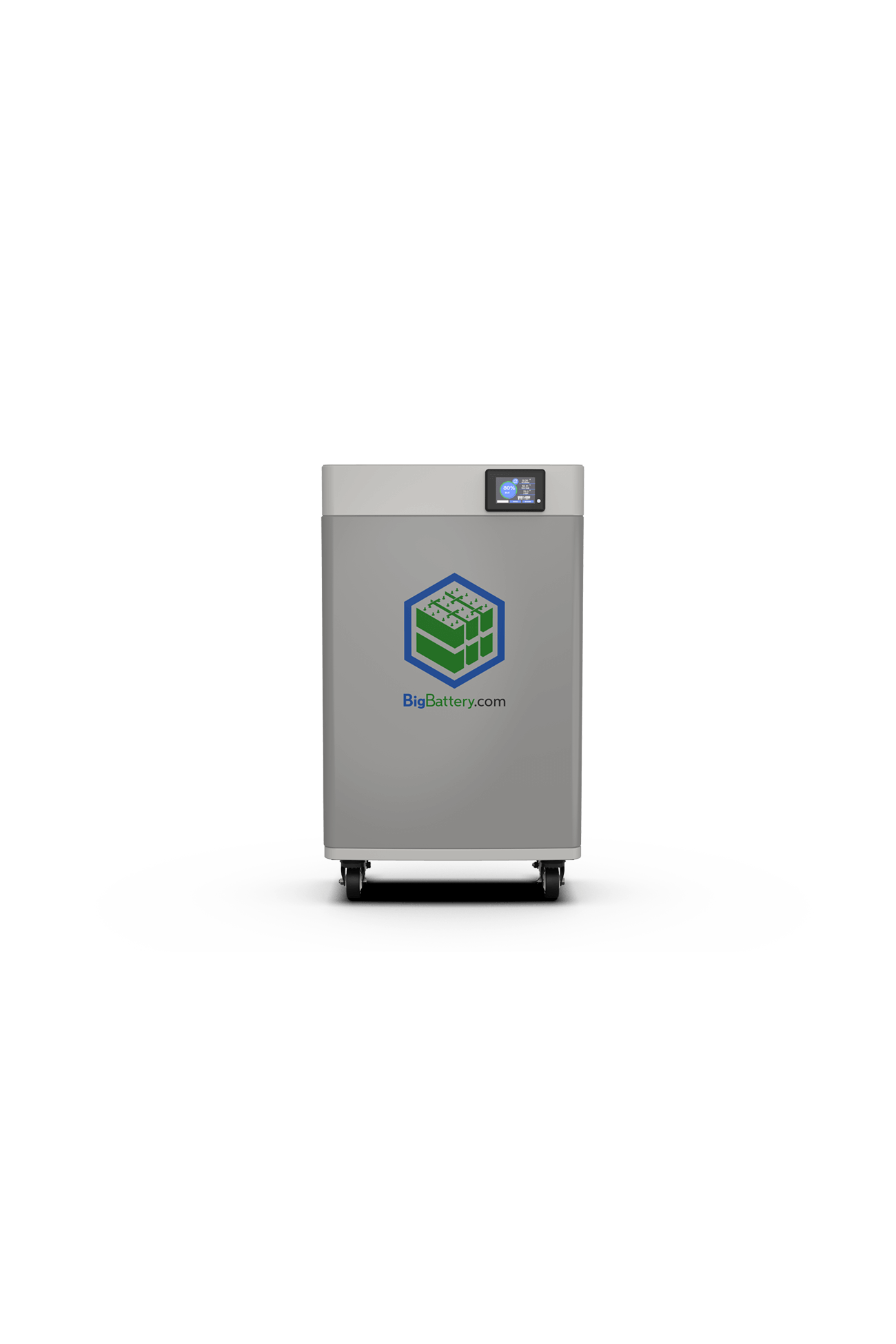

Big Battery 48V Condor Elite 3 – LiFePO4 – 231Ah – 11.8kWh
Description
BACK AND BETTER THAN EVER! BigBattery’s 48V 11.8 kWh CONDOR Elite (CNDR) battery is here! Returning with even more capacity, the CNDR Elite improves upon our top-selling CNDR and is the ultimate solution for your solar, off-grid, or emergency power systems.
The CNDR Elite comes equipped with our advanced BMS and proprietary Triple Safety Redundancy System, so you never have to worry about the safety or reliability of your power. Plus, an LED Smart Display is built into the front of the unit so you can always monitor the status and performance of your battery including metrics such as voltage, amperage, temperature, cycle count, cell voltages, and more. With the ability to connect several units together in parallel, you can set yourself up with a massive home power system, or just store one away for emergency power should you ever need it.
With an added 3.1 kWh and 61 Ah of capacity, paired with a 175A Continuous Discharge Rate, a single CNDR Elite could power your entire 2 – 4 bedroom home! This battery is one of the most cost effective (price/kWh) home power storage solutions on the market today, and is backed by our comprehensive 10-Year Warranty. If you’re looking to massively upgrade your power system, start with the 48V CNDR Elite!
Tech Specs
| SKU: | ACNDR-48118-G3 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 11.8kWh |
| Ah Capacity: | 231Ah |
| Charging Voltage Range: | 55.6 – 58.0V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 47.2 – 58.8V |
| Suggested Low Voltage Cutoff: | 47.2 – 50.8V |
| BMS Cutoff Range: | 42 – 47V |
| Cell Configuration: | 16S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7500W |
| Max Discharge Peak Current: | 350A (6 Seconds) |
| Max Charge Current: | 90A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 358 lb (162.4 kg) |
| Depth: | 9.1 in (23.1 cm) |
| Width: | 21 in (53.3 cm) |
| Height: | 32.3 in (82 cm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
