Big Battery 48V 2X Puma Kit
Included Component’s
2 x 48V Puma – NMC – 133Ah – 6kWh

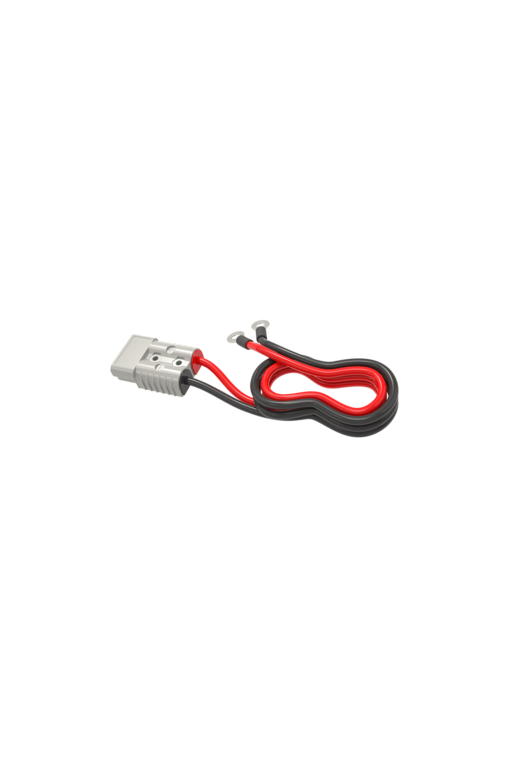

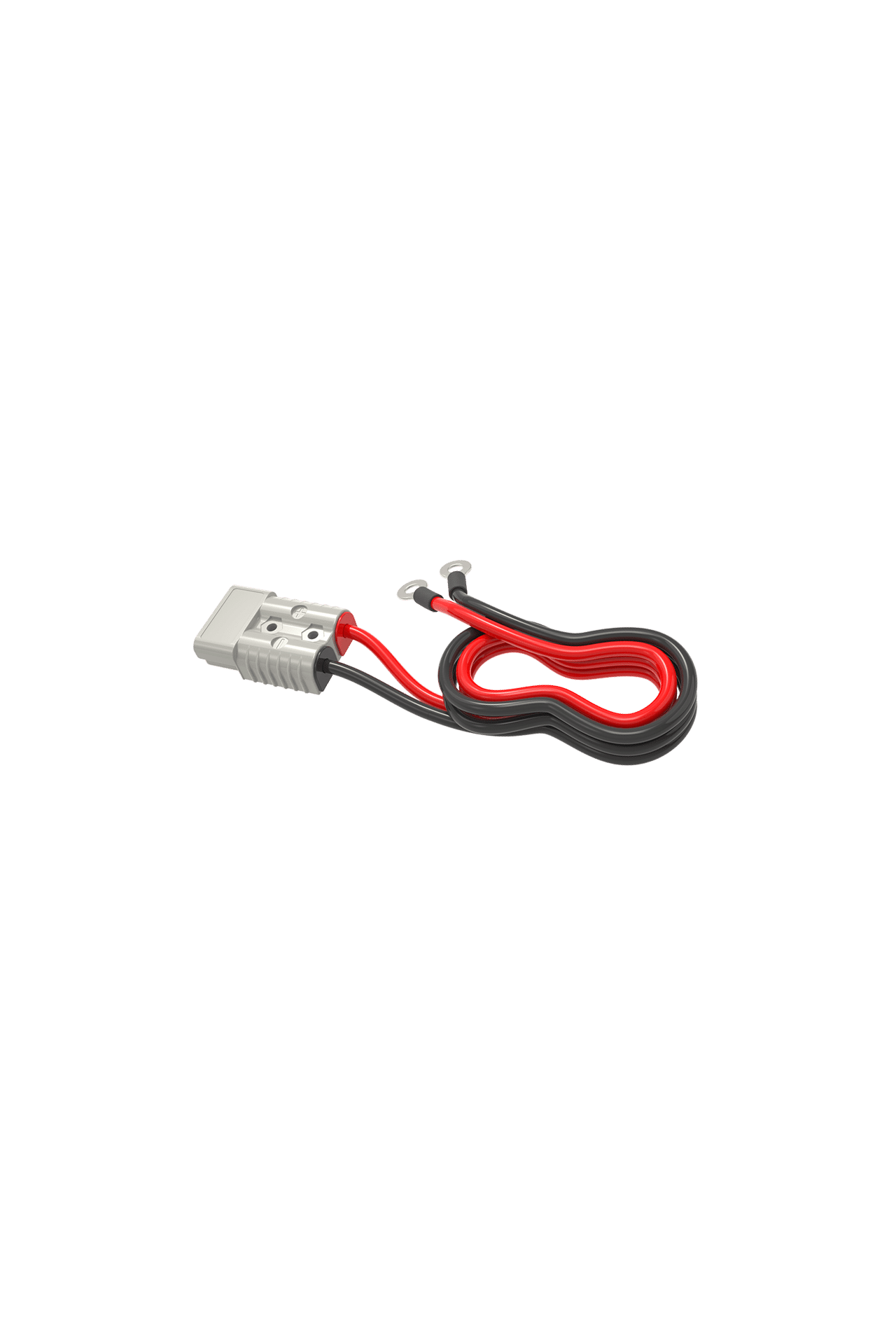

2 x 4AWG 4FT BB175 to Ring Terminal Cable
Description
THE POWER OF THE PUMA! BigBattery’s all-new 48V PUMA is a game-changer when it comes to compact power storage for your home or business.
The PUMA is our most compact 48V off-grid solution to date, packing 6kWh (133Ah) of capacity in a sleek, wall-mountable casing. Designed to be an energy-dense and reliably efficient way to power your appliances, the PUMA can be discreetly installed in your garage, shed, or office building, with zero demands for routine maintenance and a lifespan of up to 10+ years.
The PUMA comes equipped with our advanced BMS and proprietary Triple Safety Redundancy System, so you never have to worry about the safety or reliability of your power. Plus, an LED Smart Display is built into the side of the unit so you can always monitor the health and status of your battery, including metrics such as voltage, amperage, temperature, cycle count, cell voltages, and more. With the ability to connect up to 8 units together in parallel, you can set yourself up with a massive power system or just store one away for backup power should you ever need it.
Shop the all-new 48V PUMA today, and ensure your home or business is always powered and prepared!
Single Battery Tech Specs
| SKU: | APUMR-48066-G1 |
| System Voltage: | 48V |
| Nominal Voltage: | 50.4V |
| Chemistry: | NMC |
| kWh Capacity: | 6kWh |
| Ah Capacity: | 133Ah |
| Charging Voltage: | 58.8V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 44.8 – 58.8V |
| Suggested Low Voltage Cutoff: | 44.8 – 51.6V |
| Cell Configuration: | 14S 2P |
| Max Continuous Discharge Current: | 175A |
| Max Continuous Power: | 10000W |
| Max Discharge Peak Current: | 350A (6 Seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 136 lbs (62 kg) |
| Depth: | 5 in (127 mm) |
| Width: | 19.9 in (505.5 mm) |
| Height: | 26.8 in (680.7 mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
